J127 PCB Micro Connectors
Application areas:
Hangxu Electronics Technology offers high-quality Pcb Mountable Connectors and Pcb Mount Connectors. These connectors ensure stable connections on PCBs for various electronics.
Classification:
-
File size: 665.5KB
- Descriptions
- Performances
- Specifications
- Selection
-
- Commodity name: J127 PCB Micro Connectors
Hangxu Electronics Technology offers high-quality Pcb Mountable Connectors and Pcb Mount Connectors. These connectors ensure stable connections on PCBs for various electronics.
Descriptions
■ Complies with MIL-C-55302 standard;
■ Adopts claw spring contacts;
■ 0.05”(1.27mm) contact spacing;
■ Layout including 6, 10, 20, 30, 40, 60, 80, etc;
■ Installed with screw fixing;
■ PCB termination form;
■ Suitable for high-density, miniaturization, lightweight electrical systems.
The J127 PCB Micro Connectors are an outstanding addition to the world of Pcb Mountable Connectors and Pcb Mount Connectors. These connectors are precision-engineered to provide exceptional performance and reliability. Their small and compact design makes them ideal for PCB applications where space is a constraint. The J127 connectors offer seamless connectivity, ensuring efficient signal and power transfer. They are built to withstand the rigors of various environments, maintaining their integrity and functionality. With their high-quality construction and advanced features, they play a vital role in enabling the smooth operation of electronic devices. The combination of these connectors with PCB mounting capabilities offers a seamless integration solution, enhancing the overall functionality and efficiency of the PCB systems. Whether in complex electronics or simple circuits, the J127 PCB Micro Connectors are a trusted choice for reliable PCB connectivity.
-
Performances
■ Operating temperature: -55℃～+125℃
■ Rated current: 2A
■ Contact resistance: ≤10mΩ
■ Insulation resistance: ≥1000MΩ
■ Dielectric withstand voltage: 500V(sea level);
■ Vibration: 10Hz～2000Hz 196m/s2
■ Impact: 490m/s2
■ Durability: 500 mating cyclesAmbient temperature Rated current Contact resistance Insulation resistance dielectric withstand voltage Mechanical life Vibration Impact -55 ℃ ~ 125 ℃ 2A ≤ 10mΩ ≥1000mΩ 500V (sea level) 500 times 10Hz～2000Hz 196m/s2 490m/s2 -
Row 2
4 rows
-
Product Model
① Main name code
J127 Series
② Contact arrangement
A- Row 2; Row B- 4;
③ Number of contacts
A(2 rows):06, 10, 20, 30, 40, 60, 80;B(4 rows):20, 40, 80;
④ Contact form
P-pin; S-socket;
⑤ Tail form
V1-in-line printing board, height 2.8mm; W1-curved printing board, height 2.8mm;H-welding type;
⑥ Locking type
None-without locking assembly; DK-with guide post hole, nut fixed, only applicable to the jack end; DZ-with guide post, nut fixed, only applicable to the pin end;
Model Example
J127-A20PV1
The above said: J127 series, 2 rows, 20 cores, pins, in-line printed board, pin length 2.8mm, no locking components.

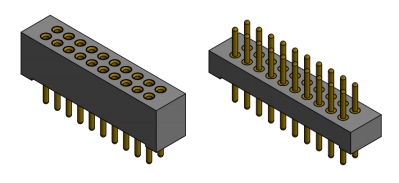

■ J127-A □ SV1 in-line printed board
Printed board opening size (for reference only)
Ordering mark
n
A
J127-A06SV1
6
6.3
J127-A10SV1
10
8.9
J127-A20SV1
20
15.2
J127-A30SV1
30
21.6
J127-A40SV1
40
27.9
J127-A60SH1
60
40.6
J127-A80SV1
80
53.3
■ J127-A □ PV1 In-line Printing Board
Printed board opening size (for reference only)
Ordering mark
n
A
J127-A06PV1
6
6.3
J127-A10PV1
10
8.9
J127-A20PV1
20
15.2
J127-A30PV1
30
21.6
J127-A40PV1
40
27.9
J127-A60PV1
60
40.6
J127-A80PV1
80
53.3
■ J127-B □ SV1 in-line printed board
Printed board opening size (for reference only)
Ordering mark
n
A
J127-B20SV1
20
8.9
J127-B40SV1
40
15.2
J127-B80SV1
80
27.9
■ J127-B □ PV1 In-line Printing Board
Printed board opening size (for reference only)
Ordering mark
n
A
J127-B20SV1
20
8.9
J127-B40SV1
40
15.2
J127-B80SV1
80
27.9

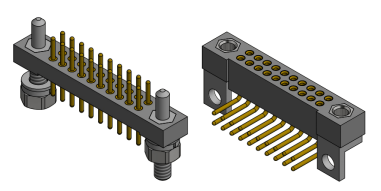

■ J127-A □ SV1-DK fixed in-line printed board
Printed board opening size (for reference only)
Ordering mark
A
n
B
J127-A06SV1-DK
11.3
6
7.7
J127-A10SV1-DK
13.9
10
10.3
J127-A20SV1-DK
20.2
20
16.6
J127-A30SV1-DK
26.6
30
23
J127-A40SV1-DK
32.9
40
29.3
J127-A60SH1-DK
45.6
60
42
J127-A80SV1-DK
58.3
80
54.7
■ J127-A □ PV1-DZ fixed in-line printed board
Printed board opening size (for reference only)
Ordering mark
n
A
B
J127-A06PV1-DZ
6
11.3
7.7
J127-A10PV1-DZ
10
13.9
10.3
J127-A20PV1-DZ
20
20.2
16.6
J127-A30PV1-DZ
30
26.6
23
J127-A40PV1-DZ
40
32.9
29.3
J127-A60PV1-DZ
60
45.6
42
J127-A80PV1-DZ
80
58.3
54.7
■ J127-A □ SW1-DK fixed in-line printed board
Printed board opening size (for reference only)
Ordering mark
n
A
B
J127-A06SW1-DK
6
11.3
7.7
J127-A10SW1-DK
10
13.9
10.3
J127-A20SW1-DK
20
20.2
16.6
J127-A30SW1-DK
30
26.6
23
J127-A40SW1-DK
40
32.9
29.3
J127-A60SW1-DK
60
45.6
42
J127-A80SW1-DK
80
58.3
54.7
■ J127-A □ PW1-DZ fixed in-line printed board
Printed board opening size (for reference only)
Ordering mark
n
A
B
J127-A06PW1-DZ
6
11.3
7.7
J127-A10PW1-DZ
10
13.9
10.3
J127-A20PW1-DZ
20
20.2
16.6
J127-A30PW1-DZ
30
26.6
23
J127-A40PW1-DZ
40
32.9
29.3
J127-A60PW1-DZ
60
45.6
42
J127-A80PW1-DZ
80
58.3
54.7
