Y35 Nano Circular Connectors
Application areas:
Hangxu Electronics Technology presents Nano Circular Connectors and Circular Connector Cable Assembly. These high-quality products ensure reliable connections and optimal performance in various applications.
Classification:
-
File size: 523.7KB
- Descriptions
- Performances
- Specifications
- Selection
-
- Commodity name: Y35 Nano Circular Connectors
Hangxu Electronics Technology presents Nano Circular Connectors and Circular Connector Cable Assembly. These high-quality products ensure reliable connections and optimal performance in various applications.
Descriptions
Complies with MIL-DTL-83513 standard;
Adopts twisted elastic pins;
0.037”(0.95mm) contact spacing;
Layout including A10, B22, C37, D61, etc;
Thread locking, push-pull quick locking methods;
Crimping termination form;
Suitable for high-density, miniaturization, lightweight electrical systems.
The Y35 Nano Circular Connectors from Hangxu Electronics Technology are truly remarkable. These precision-engineered connectors, along with the general Nano Circular Connectors, offer superior connection capabilities. Their small and compact design makes them ideal for space-limited applications. The Circular Connector Cable Assembly further enhances their functionality, providing a seamless and reliable connection between different components. These products are known for their durability, high performance, and ability to ensure stable signal transmission. They are widely used in various industries such as electronics, telecommunications, and automotive, where dependable connections are critical. Whether in complex systems or intricate devices, the Y35 Nano Circular Connectors and their associated assemblies play a vital role in enabling efficient and trouble-free operations.
-
Performances
■ Operating temperature: -55℃～+125℃
■ Rated current: 2A
■ Contact resistance: ≤10mΩ
■ Insulation resistance: ≥5000MΩ 500VDC
■ Dielectric withstand voltage: 500V
■ Vibration: 10Hz～2000Hz 196m/s2
■ Random vibration: Power spectral density 0.4G2/Hz, total acceleration RMS value 23.1G
■ Impact: 980m/s2, 6ms
■ Durability: 500 mating cycles -

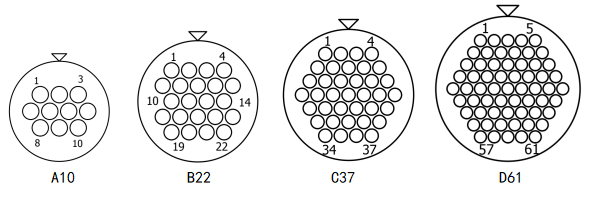

Contact arrangement (see plug docking end)
-
Product Model
① Title Code
Y35
② Locking Method
L-Threaded Type; Q-Quick Lock Type; ③ Contact Arrangement
A10、B22、C37、D61
④ Connector Type
TJ - Plug Installation Pin; ZK - Socket Installation Socket; ⑤ Surface Treatment F—Electroless Nickel Plating on aluminum alloy
⑥ Key position
N—Standard key position、A、B
⑦ Installation method of sockets
02- Installation in front of the flange plate; 03- Installation after nut plate Model Example
Y35Q-A10TJF □ 02 (using AFR-250 0.1mm2 wire with a length of 300mm)
The above indicates: Y35 quick lock type, A10 arrangement, plug mounted crimping type pin, shell surface treated with chemical nickel plating, standard key position, flange plate front installation method, wire grade AFR-250, wire core cross-sectional area 0.1mm2, length 300mm, color white.

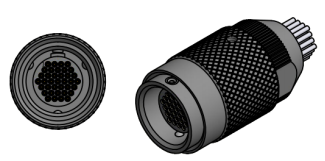

■ Y35L-□TJF□Plug
Order Flag ΦA
B（参考）
Y35L-A10TJF□
Φ13
22
Y35L-B22TJF□
Φ15
22
Y35L-C37TJF□
Φ16
22
Y35L-D61TJF□
Φ18
22

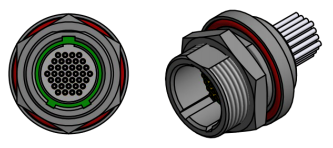

■ Y35L-□ZKF□03Socket
Installation plate hole size (thickness of 2max)
Order Flag ΦA
D
E
Y35L-A10TJF□
Φ13
Φ9.1
8.5
Y35L-B22TJF□
Φ15
Φ11.1
10.6
Y35L-C37TJF□
Φ16
Φ12.1
11.7
Y35L-D61TJF□
Φ18
Φ18.1
13.6
■ Y35Q-□TJF□Plug
Order Flag φA
B（参考）
Y35Q-A10TJF□
φ13.5
24
Y35Q-B22TJF□
φ14.5
24
Y35Q-C37TJF□
φ15
24
Y35Q-D61TJF□
φ16
24
■ Y35Q-□ZKF□02Socket
Installation plate hole size (thickness 2.5max)
Order Flag A
B
D
Y35Q-A10ZKF□02
14
10
φ8.1
Y35Q-B22ZKF□02
14.4
10.4
φ9.3
Y35Q-C37ZKF□02
14.8
10.8
φ9.9
Y35Q-D61ZKF□02
16
11.8
φ11.3
