DC Single Core Insulator
Application areas:
Hangxu Electronics Technology presents the DC Single Core Insulator, a high-quality product ensuring excellent insulation and performance in electrical systems, trusted by many for its reliability and durability.
Classification:
-
File size: 138.4KB
- Descriptions
- Performances
- Specifications
- Selection
-
- Commodity name: DC Single Core Insulator
Hangxu Electronics Technology presents the DC Single Core Insulator, a high-quality product ensuring excellent insulation and performance in electrical systems, trusted by many for its reliability and durability.
Product Introduction
■ Features: small size, light weight, easy to use, high reliability and air tightness;
■ Composition: The product is sealed by Kovar alloy and glass;
■ Installation mounting: Soldering;
■ Applicable to airtight, DC feed field;
■ Perform standard GJB2440A.
Advantages
The DC Single Core Insulator is a remarkable product with outstanding performance and diverse uses. This insulator is designed to provide excellent electrical insulation, preventing current leakage and ensuring the safe operation of electrical systems. It has high dielectric strength, enabling it to withstand high voltages without breakdown.
In terms of performance, it exhibits superior resistance to environmental factors such as moisture, heat, and corrosion, ensuring long-term durability and reliability. It is also mechanically stable, capable of withstanding physical stresses and impacts.
The DC Single Core Insulator finds extensive applications in various industries. In the power transmission and distribution sector, it is crucial for insulating power cables and ensuring the efficient transfer of electricity. It is used in substations and power plants to maintain the integrity of electrical circuits. In the electronics industry, it is employed in the insulation of components and circuits. Additionally, it is utilized in automotive and aerospace applications where reliable insulation is essential for the safe operation of electrical systems. Its performance and versatility make it an indispensable component in many electrical and electronic systems, contributing to the smooth functioning and safety of these systems.
-
Product Performance
Ambient temperature Mechanical life
leakage rate
-55 ℃ ~ 125 ℃
500 times
≤ 1 × 10-3pa.cm3/s
Material and surface treatment
Part Name
Materials
Surface treatment
needle body
Kovar alloy
Gold Plated
Shell
Kovar alloy
Gold Plated
insulating medium
Glass
/
-
Product Model
① Model No.
DC-Single core DC insulator

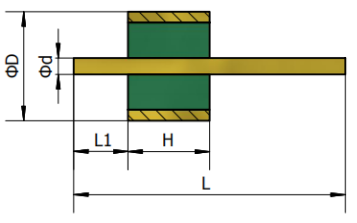

② Outer diameter of shell (ΦD)
20-Φ2mm,25-Φ2.5mm
③ Shell height (H)
16-1.6mm,20-2.0mm
④ Needle diameter (Φd)
0.25-Φ0.25mm,0.30-Φ0.3mm
⑤ Length of needle body from one end face of shell (L1)
3-3mm,4-4mm
The total length of the needle (L)
8-8mm,12-12mm
Model Example
DC2016-0.3（2-8）
The above indicates that the single-core DC insulator has a shell diameter of Φ2mm, a height of 1.6mm, a needle diameter of Φ0.3mm, a length of 2mm from one end of the shell, and a total needle length of 8mm.
List of DC Insulators
Model
D
H
d
L1
L
Remarks
DC1320-0.38（1.3-6.8）
1.25
2.0
0.38
1.3
6.8
DC1616-0.45（4.1-8）
1.6
1.6
0.45
4.1
8
DC1616-0.45（4.2-8）
1.6
1.6
0.45
4.2
8
DC1616-0.45（5-18.6）
1.6
1.6
0.45
5
18.6
DC1616-0.45（4-12）
1.6
1.6
0.45
4
12
DC1616-0.45（1-8）
1.6
1.6
0.45
1
8
DC1616-0.45（0.3-6）
1.6
1.6
0.45
0.3
6
DC1616-0.45（3.5-11.7）
1.6
1.6
0.45
3.5
11.7
DC1616-0.45（1-5）
1.6
1.6
0.45
1
5
DC1616-0.5（2-12）
1.6
1.6
0.5
2
12
DC1616-0.5（4.6-12）
1.6
1.6
0.5
4.6
12
DC1616-0.7（0.3-20）
1.6
1.6
0.7
0.3
20
DC1616-0.7（5-9.6）
1.6
1.6
0.7
5.9
9.6
DC1616-0.7（1.2-6.8）
1.6
1.6
0.7
1.2
6.8
DC1616-0.7（2-8.6）
1.6
1.6
0.7
2.8
8.6
DC1616-0.5（5-11.1）
1.6
1.6
0.5
5
11.1
DC1611-0.45（1.75-7.85）
1.6
1.1
0.45
1.75
7.85
DC2015-0.7（4.8-11）
2.0
1.5
0.7
4.8
11
DC2016-0.45（1-6.6）
2.0
1.6
0.45
1
6.6
DC2530-0.7（2-13.5）
2.5
3.0
0.7
2
13.5
DC2516-0.7（4.6-11）
2.5
1.6
0.7
4.6
11
DC2816-1（4.1-11.5）
2.8
1.6
1
4.1
11.5
Note: DC insulators can be customized according to customer requirements.
