RF Connector 2.4

Application areas:

It has the advantages of small size, light weight, high frequency of use, reliable connection, etc; It is suitable for precision measuring instruments and millimeter wave communication equipment;

Classification:

RF Connectors

Service Hotline:

185-8685-2255

射频连接器2.4系列.pdf

File size: 255.5KB

Select all

Online consultation

Descriptions
Performances
Specifications
Selection

- Commodity name: RF Connector 2.4
It has the advantages of small size, light weight, high frequency of use, reliable connection, etc; It is suitable for precision measuring instruments and millimeter wave communication equipment;

Product introduction

■ it has the advantages of small volume, light weight, high frequency of use, reliable connection, etc;

■ installation method: flange plate, etc;

■ end form: cable, microstrip, etc;

■ locking mode: thread locking;

■ suitable for precision measuring instruments and millimeter wave communication equipment;

■ product interface: radio frequency connector interface (GJB 5246-2004);

■ Executive Standards: GJB 680a-2009 general specification for RF coaxial connector adapters, GJB 681a-2002 general specification for RF coaxial connectors, GJB 976a-2009 general specification for RF coaxial connectors for coaxial, stripline or microstrip transmission lines

Main performance parameters

Ambient temperature	-55℃～+125℃			Frequency range	DC～50GHz
Characteristic impedance	50Ω			Insulation resistance	≥1000MΩ
vswr	DC～18GHz～18GHz	18GHz～40GHz	40GHz～50GHz	contact resistance	Inner Conductor	≤4.0mΩ
	1.15max	1.2max	1.3max		Outer Conductor	≤2.5mΩ（Stainless steel: ≤5.0mΩ）
Dielectric withstand voltage	500Vr.m.s			Insertion loss
Mechanical life	500 times
Main materials and surface treatment
Inner Conductor	Copper and copper alloys			Gold-plating
Outer Conductor	Brass (stainless steel)			Gold plating (brass), stainless steel (passivation)
Medium body	Teflon			/

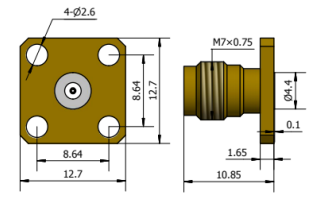

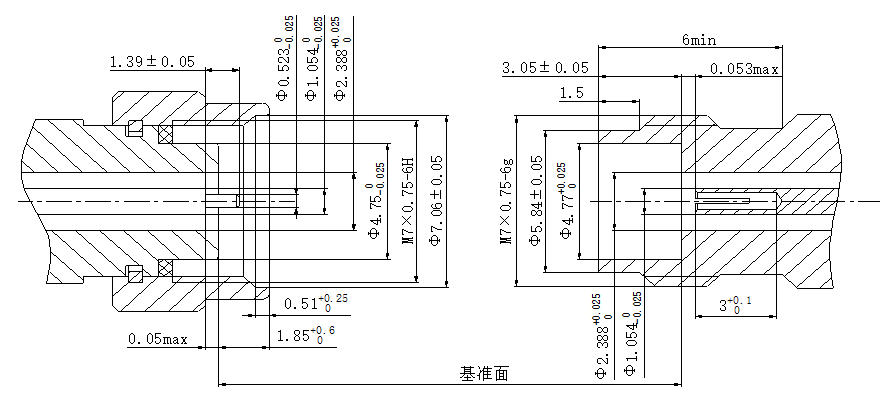

Interface size
Model: 2.4-jb2; Adapt to rg405/u, etc

Model: 2.4-ksb2; Adapt to rg405/u, etc

Model: 2.4-kfd;

Model: 2.4-kfd1; Adaptation Φ zero point three

Model: 2.4/2.92-jsk;
