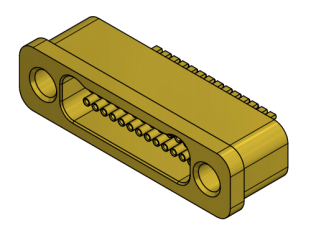

J63AM Nano-D Airtight Connectors
Application areas:
Hangxu Electronics Technology specializes in wholesale Nano-D airtight connectors, offering high-quality solutions at low prices. Our Nano-D airtight connectors ensure reliable connections in demanding environments.
Classification:
-
File size: 413.6KB
- Descriptions
- Performances
- Specifications
- Selection
-
- Commodity name: J63AM Nano-D Airtight Connectors
Hangxu Electronics Technology specializes in wholesale Nano-D airtight connectors, offering high-quality solutions at low prices. Our Nano-D airtight connectors ensure reliable connections in demanding environments.
Hangxu Electronics Technology specializes in wholesale Nano-D airtight connectors, offering high-quality solutions at low prices. Our Nano-D airtight connectors ensure reliable connections in demanding environments.
Product Introduction
■ Arrangement of type spectrum: 9, 15, 21, 25, 31, 37;
■ Termination Form: gold wire bonding;
■ Installation mounting: Soldering;
■ Suitable for air tightness requirements;
■ Product performance meets GJB7245 requirements.
The J63AM Nano-D Airtight Connectors are a remarkable innovation within the realm of Nano-D Connectors. These connectors are engineered with meticulous attention to detail, ensuring airtight seals and superior performance. Their nano-sized design allows for seamless integration into the most compact and demanding applications. The J63AM connectors offer unrivaled reliability and stability, guaranteeing efficient signal transmission and secure connections. They are designed to withstand various environmental conditions, making them suitable for a wide range of industries. The Nano-D Connectors, of which the J63AM is a part, represent the cutting-edge of connector technology. They enable the miniaturization and enhanced functionality of electronic devices, providing a crucial link in the complex web of modern electronics. With their advanced features and high-quality construction, the J63AM Nano-D Airtight Connectors are set to revolutionize the way we connect and interact with technology.
-
Product Performance
■ Ambient temperature:-55 ℃ ~ 125 ℃
■ Rated current: 1A
■ Contact resistance: ≤ 80mΩ
■ Insulation resistance: ≥ 500MΩ
■ dielectric withstand voltage: 250V (sea level)
■ Mechanical life: 200 times
■ Vibration: 10Hz ~ 2000Hz 196m/s2
■ Impact: 980m/s2,6ms
Leakage rate: ≤ 1 × 10-9pa.m3/s
-

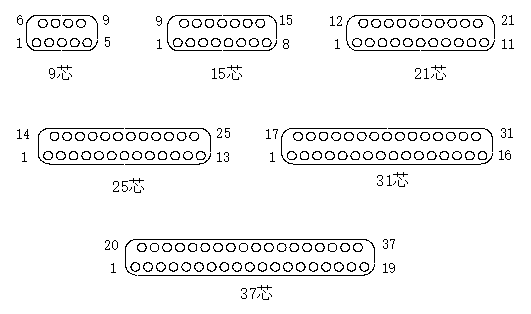

type spectrum arrangement
-
Product Model
① Model No.
J63A
② Contact arrangement
Row 2-2
③ Connector type
M-airtight type
④ Shell plating
1-Gold plated
⑤ Number of contacts
009、015、021、025、031、037
⑥ Shell type
Q1-shell with M1.6 thread, can be J63A with locking screw plug docking
Q3-Shell with guide hole, can be connected with J63A with guide post plug
⑦ Termination Form
No mark-pin diameter Φ0.46, gold wire bond
Model Example
J63A-2M1-025-Q1
The above shows: J63A airtight type, the shell is nickel-based alloy gold-plated, 2 rows, 25 cores, pin gold-plated, gold wire bonding, with guide holes.
Description
1)J63A-2M1-□-Q3 can be paired with J63A-2U2- □ □ -161-00, etc;
2)J63A-2M1-□-Q1 can be paired with J63A-212- □ □ -161-JC, etc.

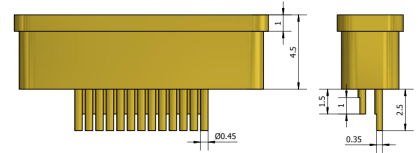

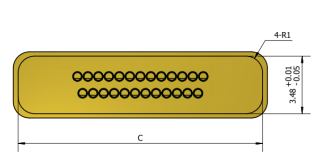

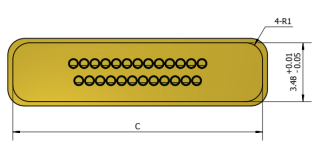

■ J63A-2M1-□-Q3 hermetically sealed socket
Ordering mark
A
B
C
J63A-2M1-009-Q3
10.29
6.86
9.69
J63A-2M1-015-Q3
12.2
8.76
11.6
J63A-2M1-021-Q3
14.1
10.67
13.5
J63A-2M1-025-Q3
15.37
11.94
14.77
J63A-2M1-031-Q3
17.28
13.84
16.68
J63A-2M1-037-Q3
19.18
15.75
18.58

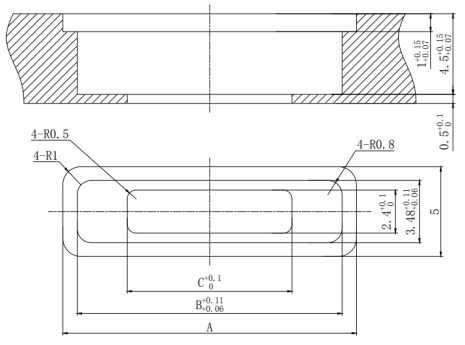

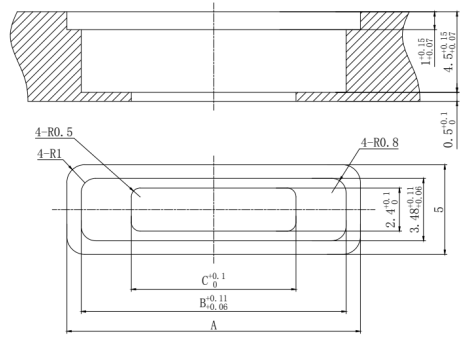

■Mounting plate hole size
Ordering mark
A
B
C
J63A-2M1-009-Q3
11.3
9.7
4.1
J63A-2M1-015-Q3
13.2
11.6
6
J63A-2M1-021-Q3
15.1
13.5
7.9
J63A-2M1-025-Q3
16.4
14.8
9.2
J63A-2M1-031-Q3
18.3
16.7
11.1
J63A-2M1-037-Q3
20.2
18.6
13

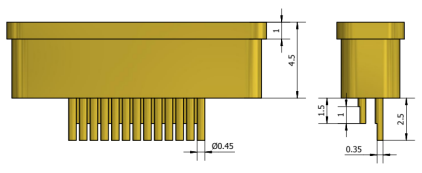

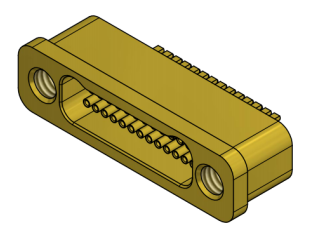

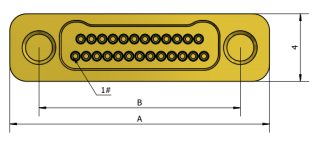

■ J63A-2M1-□-Q1 hermetically sealed socket
Ordering mark
A
B
C
J63A-2M1-009-Q1
10.29
6.86
9.69
J63A-2M1-015-Q1
12.2
8.76
11.6
J63A-2M1-021-Q1
14.1
10.67
13.5
J63A-2M1-025-Q1
15.37
11.94
14.77
J63A-2M1-031-Q1
17.28
13.84
16.68
J63A-2M1-037-Q1
19.18
15.75
18.58
■Mounting plate hole size
Ordering mark
A
B
C
J63A-2M1-009-Q1
11.3
9.7
4.1
J63A-2M1-015-Q1
13.2
11.6
6
J63A-2M1-021-Q1
15.1
13.5
7.9
J63A-2M1-025-Q1
16.4
14.8
9.2
J63A-2M1-031-Q1
18.3
16.7
11.1
J63A-2M1-037-Q1
20.2
18.6
13
