- Commodity name: RF Connector 3.5
Hangxu Electronics Technology specializes in best RF connectors, trusted by RF connectors manufacturers worldwide. High-performance solutions for all your connectivity needs.
Hangxu Electronics Technology specializes in best RF connectors, trusted by RF connectors manufacturers worldwide. High-performance solutions for all your connectivity needs.
RF Connector 3.5 offers several distinct advantages and finds widespread use in various applications. One of the key advantages is its reliable signal transmission. It ensures minimal signal loss, providing clear and stable communication. This makes it ideal for high-frequency applications where signal integrity is crucial. The connector is also known for its durability and resistance to environmental factors. It can withstand harsh conditions, making it suitable for use in both indoor and outdoor settings. Its compact size allows for easy integration into different devices and systems without taking up much space. In terms of uses, RF Connector 3.5 is commonly employed in the telecommunications industry. It is used in wireless communication devices such as mobile phones, routers, and base stations to connect antennas and other components. It also plays a vital role in satellite communication systems, ensuring efficient signal transfer between different parts. In the field of electronics and instrumentation, it is used in test and measurement equipment to establish reliable connections for accurate signal analysis. Additionally, it is utilized in automotive electronics, such as in-car entertainment systems and GPS devices, to maintain signal quality. The connector's ability to handle high frequencies also makes it suitable for use in radar and microwave applications. Overall, RF Connector 3.5 is an essential component in many industries, enabling seamless communication and reliable performance in a wide range of applications.
-
Main performance parameters
Ambient temperature -55℃～+125℃
Frequency range DC～50GHz
Characteristic impedance 50Ω
Insulation resistance ≥1000MΩ
vswr 1.05+0.015f(GHz) contact resistance Inner Conductor ≤4.0mΩ
OUTER CONDUCTOR ≤2.0mΩ（Stainless steel:≤5.0mΩ）
dielectric withstand voltage 1000Vr.m.s
Insertion loss
mechanical life 500 times
Main materials and surface treatment
Inner Conductor
Copper and copper alloys
Gold-plating
Outer Conductor
Brass (stainless steel)
Gold plating (brass), stainless steel (passivation)
Medium body
Teflon
/
-

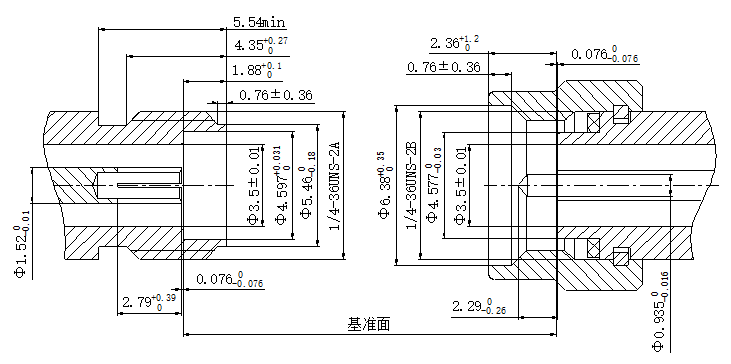

Interface size
-
Model: 3.5-jsb3; Adapt to rg402/u, etc;
Model: 3.5-ksb3; Adapt to rg402/u, etc;
Model: 3.5-jfd1;
Model: 3.5/2.4-jsj;
Model: 3.5-jsj;
Key words:
Hangxu Electronics, Hangxu Electronic Technology, Electronic Connectors
